Chief STMS1U
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

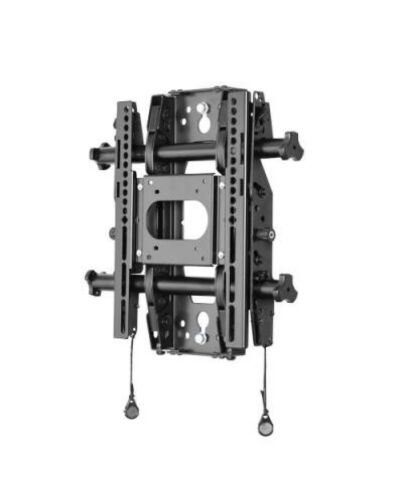

Installer-inspired Fusion tilt mount solves top flat panel installation problems offering flexible adjustments for small displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind narrow bezel displays in the 24-32 range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt ControlZone leveling adjustment and ClickConnect Latching.
• Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
• Tilt can be locked at 0 -6 or -12
• ControlZone leveling allows post-installation fine-tuning of height and leveling
• ClickConnect offers an audible click when the display safely engages with the mount
• Post-installation lateral positioning
• Set screws keep the mount rigid stable and secure throughout the life of the installation
• Exclusive nesting spacers can be stacked to achieve any depth
• Quick-Store Cords use magnets to easily store and access pull cords
• Integrated Security
• Ships with a custom hardware kit that can be hung from mount rails if installing in stages
• Easy Open box with less waste to throw away
Features | |
---|---|
Bracket Type | Wall |
Bracket Orientation | Landscape / Portrait |
Bracket Function | Tilt |
Minimum VESA Compatibility | 75 x 75 mm |
Maximum VESA Compatibility | 300 x 300 mm |
Max Weight | 34 KG |
Colour | Black |
Screen Size | 24 - 42 Inch |
Additional Information
MPN | STMS1U |
---|---|
BRAND | Chief |
EAN/UPC | 841872167749 |
