ATEN VM0404HB-AT-E

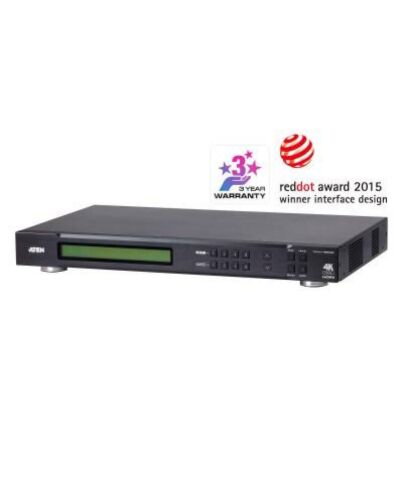

Aten VM0404HB-AT-E

Product Key Features
• Connects any of 4 HDMI sources to any of 4 HDMI displays.
• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4).
• Multiple Control Methods – system management via front-panel pushbuttons IR remote RS-232 control and Web GUI/Telnet via Ethernet connections.
• HDMI (3D Deep Color 4K) and HDCP 2.2 compatible.

Product Overview
ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4) the VM0404HB delivers robust signal routing and ultra-fast digital video switching making it perfect for applications where routing of True 4K digital signals is required such as event venues digital classrooms auditoriums department stores and more.

The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI the VM0404HB can be operated through front-panel pushbuttons IR remote RS-232 control and Telnet via Ethernet connections giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Product Package Contents
• 1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch.
• 1x Power Cord.
• 1x IR Remote Control.
• 1x IR Receiver.
• 1x Rack Mounting Kit.
• 1x User Instructions.

More Product Key Features
• Connects any of 4 HDMI sources to any of 4 HDMI displays.
• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4).
• Multiple Control Methods – system management via front-panel pushbuttons IR remote RS-232 control and Web GUI/Telnet via Ethernet connections.
• View and control via ATEN Video Matrix Control App in a swift and agile way.
• EDID Expert™ – selects optimum EDID settings for smooth power-up high-quality display and use of the best video resolution across different screens.
• Signaling rates up to 6 Gbits for flawless true 4K output.
• Supports Dolby True HD and DTS HD Master audio.
• HDMI (3D Deep Color 4K) and HDCP 2.2 compatible.
• Supports Consumer Electronics Control (CEC).
• Power-on Detection – switches to the next powered-on source when one source is powered off.
• ESD protection for HDMI.
• Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections.
• Firmware upgradeable.
• Rack mountable (1U design).

Product Specifications
Video Input
• Interfaces: 4 x HDMI Type A Female (Black).
• Impedance: 100 .
• Max. Distance: 5.0 m / 4K@60Hz (4:4:4).

Video Output
• Interfaces: 4 x HDMI Type A Female (Black).
• Max. Distance: 5m / 4K@60Hz (4:4:4) 15m / 1920 x 1200.
• Impedance: 100 .

Video
• Max. Pixel Clock: 600 MHz
• Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4).
• Max. Data Rate: 18 Gbps( 6 Gbps Per Lane).
• Compliance: HDMI (3D 4K Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC).

Control
• RS-232: Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200 Data Bits: 8 Stop Bits:1 Parity: No Flow Control: No.
• IR: 1 x Mini Stereo Jack Female (Black).
• Ethernet: 1 x RJ-45 Female.

EDID Settings
• EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support).

Environmental
• Operating Temperature: 0-40C.
• Humidity:0 - 80% RH Non-Condensing.
• Storage Temperature: -20 - 60C.

Physical Properties
• Weight: 2.47 kg ( 5.44 lb ).
• Housing: Metal.
• Dimensions (L x W x H): 43.72 x 15.28 x 4.40 cm (17.21 x 6.02 x 1.73 in.).

Connectors
• Power: 1 x 3-Prong AC Socket.

Carton Lot
• 1 pc

Power Consumption
• AC110: 17.8W:83BTU.
• AC220:17.6W:83BTU.

Power
• Maximum Input Power Rating: 100-240 VAC; 50-60 Hz; 1.0A.

Note
• For some of rack mount products please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
