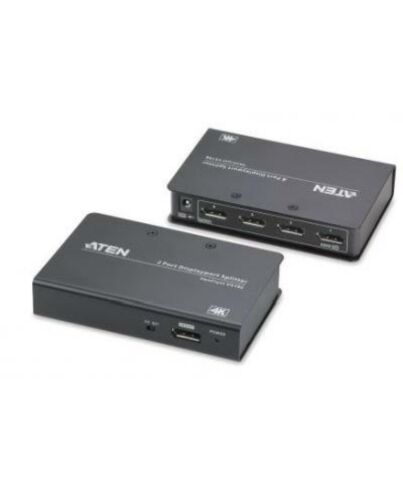

ATEN VS192-AT-E

£175.45
2-Port 4K DisplayPort Splitter Black

In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Aten VS192-AT-E

Product Key Features
• Connects one DisplayPort source to two DisplayPort monitors.
• Supports DisplayPort 1.2a; HDCP 1.3.
• Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz.
• Supports MST/ Extend Mode and SST/ Split Mode*MST/ Extend Mode:Extend a video source across 2 displays with a maximum resolution of 4K.SST/ Split Mode: Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor.
• Supports Linkrate: HBR2 (High Bit Rate 2).

Note: The VS192 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.

Product Overview
The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS192 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.

The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz making it effective and ideal for use with all DisplayPort displays in home theater applications as well as in corporate educational and commercial settings.

Product Package Contents
• 1x VS192 2-Port 4K DisplayPort Splitter.
• 1x Power Adapter.
• 1x User Instructions.

Product Specification
Video Output
Interfaces: 2 x DisplayPort Female (Black).

Video Input
Interfaces: 1 x DisplayPort Female (Black).

Video
Compliance: DP 1.2a; HDCP 1.3.
Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz.
Max. Data Rate: 21.6 Gbps (5.4 Gbps per lane).

Connectors
Power: 1 x DC Jack.

Power Consumption
• DC5V:1.185W:6BTU.

Environmental
Operating Temperature: 0-40 C.
Storage Temperature: -20 - 60 C.
Humidity:0 - 80% RH Non-Condensing.

Physical Properties
Housing: Metal.
Weight: 0.30 kg ( 0.66 lb ).
Dimensions (L x W x H): 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.).

Carton Lot
• 20 pcs.

Note
• For some of rack mount products please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Resolution3840 x 2160 Pixels
Inputs 1 x DisplayPort Female (Black)
Dimensions (D x W x H)125 x 80 x 25 mm
