ATEN VS481A-AT-E

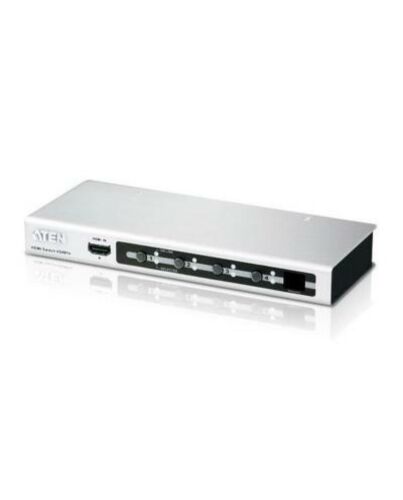

Aten VS481A-AT-E

Product Key Features
• Allows up to four HDMI A/V source to be connected to one HDMI display.
• HDMI (3D Deep Color).
• Superior video quality - HDTV resolutions of 480p 720p 1080i 1080p (1920x1080); VGA SVGA SXGA UXGA (1600x1200) and WUXGA(1920x1200).
• Built-in bi-directional RS-232 serial remote port for high-end system control.
• Toggle between A/V sources using remote control or front panel pushbuttons
• Supports Dolby True HD and DTS HD Master Audio
• Up to 60 Hz refresh rate
• Long distance transmission - up to 15m (24 AWG)
• Power On Detection – if one of the HDMI source devices is powered off the VS481A will automatically switch to the next powered on device
• Plug-and-play - no software installation required
• DDC Compatible
• HDCP 1.4 compliant
• Signaling rates up to 2.25 Gbps in support of 1080p display
• All-metal casing
• LED indication of video source devices
• Easy and affordable way to add four HDMI inputs to your home theater system

• Note: The VS481A AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com).

Product Overview
The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players Satelite receivers Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch.

Product Package Contents
• 1x HDMI Switch.
• 1x HDMI Cable (1.8m/6ft).
• 1x IR Remote Control Unit.
• 1x Power Adapter.
• 1x User Instructions.

Product Specification
Video Input
• Interfaces: 4 x HDMI Type A Female (Black).
• Impedance: 100 .
• Max. Distance: 1.8 m.

Video Output
• Interfaces: 1 x HDMI Type A Female (Black).
• Impedance: 100 .

Video
• Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane).
• Max. Pixel Clock: 225 MHz.
• Compliance: HDMI (3D Deep Color) HDCP Compatible Consumer Electronics Control (CEC).
• Max. Resolution: Up to 1080p.
• Max. Distance: Up to 15 m.

Audio
• Input: 4 x HDMI Type A Female (Black).
• Output: 1 x HDMI Type A Female (Black).

Control
• RS-232: Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200 Data Bits: 8 Stop Bits:1 Parity: No Flow Control: No.

Connectors
• Power: 1 x DC Jack.

Power Consumption
• DC5.3V:1.87W:9BTU.

Environmental
• Operating Temperature:0 - 50C.
• Storage Temperature: -20 - 60C.
• Humidity:0 - 80% RH Non-Condensing.

Physical Properties
• Housing Metal.
• Weight 0.47 kg ( 1.04 lb ).
• Dimensions (L x W x H) 20.00 x 8.27 x 2.50 cm (7.87 x 3.26 x 0.98 in.).

Carton Lot
• 10 pcs.

Note
• For some of rack mount products please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
