ATEN VS481B-AT-E

Aten VS481B-AT-E

Product Key Features
• Allows up to four HDMI A/V sources to be connected to one HDMI display.
• HDMI (3D Deep Color 4kx2k); HDCP 2.2 compatible.
• Supports 340MHz bandwidth for ultrahigh 4kx2k video.
• Quick and easy switching between HDMI sources via front panel pushbuttons RS-232 or IR Remote control.
• Auto switching modes for auto port selection.
• Long distance transmission – up to 15 m (24 AWG).
• Consumer Electronics Control (CEC) support.
• Supports Dolby True HD and DTS HD Master Audio.
• Built-in bi-directional RS-232 serial remote port for high-end system control.
• Instant switching between HDMI input sources.
• Supports IR extension using a IR extension cable *.
• LED indication of video source devices.

• Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.

Product Overview

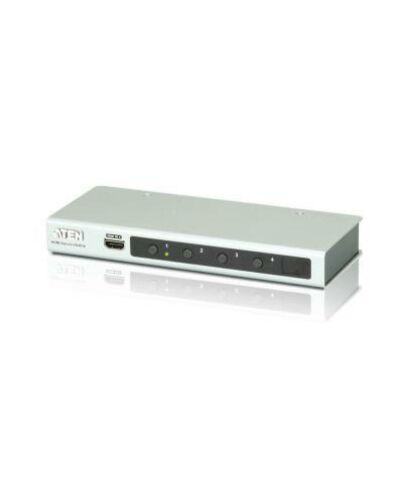

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller PC and/or home automation/home theater software package.

Product Package Contents
• 1x VS481B 4-Port HDMI Switch.
• 1x HDMI Cable (1.8m/6ft).
• 1x IR Remote Control.
• 1x Power Adapter.
• 1x User Instructions.

Product Specification
Video Input
• Interfaces: 4 x HDMI Type A Female (Black).
• Impedance: 100 .
• Max. Distance: 1.8 m.

Video Output
• Interfaces: 1 x HDMI Type A Female (Black).
• Impedance: 100 .
• Max. Distance: 15 m.

Video
• Max. Data Rate: 9 Gbps (3 Gbps Per Lane).
• Max. Pixel Clock: 300 MHz.
• Compliance: HDMI (3D Deep Color 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC).
• Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4).
• Max. Distance: Up to 15 m.

Audio
• Input: 4 x HDMI Type A Female (Black).
• Output: 1 x HDMI Type A Female (Black).

Control
• RS-232: Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200 Data Bits: 8 Stop Bits:1 Parity: No Flow Control: No.
• IR: 1 x Mini Stereo Jack Female (Black).

Connectors
• Power Connector: 1 x DC Jack Consumption: 5 VDC 5W.

Power Consumption
• DC5V:1.76W:8BTU.

Environmental
• Operating Temperature:0 - 50C.
• Storage Temperature:-20 - 60C.
• Humidity:0 - 80% RH Non-Condensing.

Physical Properties
• Housing: Metal.
• Weight: 0.48 kg ( 1.06 lb ).
• Dimensions (L x W x H):20.00 x 8.25 x 2.50 cm (7.87 x 3.25 x 0.98 in.).

Carton Lot
• 10 pcs.

Note
• For some of rack mount products please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
