Crown Extended Warranty to 6 Years

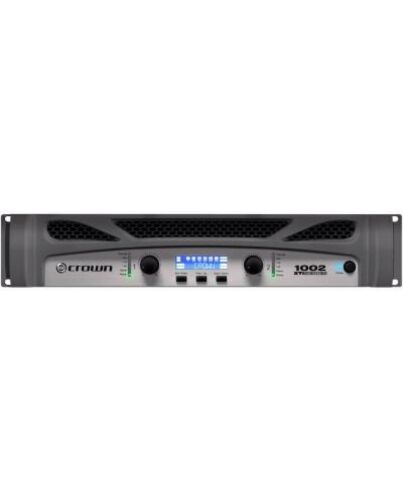

Crown’s XTi family of amplifiers defines the standard for portable PA systems with unmatched performance technology and power-to-the-people affordability that delivers the goods night after night without even breaking a sweat. There’s no debate — when you choose Crown’s XTi Series you’re choosing one of the most powerful and efficient amplifiers on the market today.
Sensitivity (volts RMS) for full rated power at 4 ohms 1.4V
Frequency Response (at 1 watt into 4 ohms 20Hz - 20 kHz) +0/–1 dB
Signal to Noise Ratio (below rated 1 kHz power at 8 ohms) A-weighted 100 dB (103 dB in XTi 6000)
Damping Factor (8 ohm): 20 Hz to 400 Hz > 500
Input Stage Input is electronically balanced and employs
precision 1% resistors.
AC Line Current
(120VAC amplifier playing 1/8 power pink noise into 4 ohms per ch) XTi 1000: 6.8A XTi 2000: 8.3A XTi 4000: 10.5A; at idle draws no more than 30 watts.
XTi 6000: 15.3A; at idle draws no more than 180 watts.
Crosstalk (below rated power) 20 Hz to 1 kHz > 70 dB
Input Impedance (nominal) 20 kilohms balanced 10 kilohms unbalanced
Load impedance (note: safe with all types of loads)
Bridge mono 2-8 ohms (4-8 ohms in XTi 1000 A1 100V versions)
4-16 ohms (8-16 ohms in XTi 1000 A1 100V versions)
Voltage Gain (at 1 kHz 8 ohm rated output) XTi 1000: 30.5 dB. XTi 2000: 32.9 dB. XTi 4000: 34.2 dB. XTi 6000: 37.1 dB.
Maximum Input Signal +22 dBu typical
Operating Temperature 0 C to 40 C at 95% relative humidity
AC Line Voltage and Frequency Configurations Available ( 10%) 100V 120V 220-240V 50/60 Hz
Ventilation Flow-through ventilation from front to back
Cooling Heat sinks and proportional-speed fan
Dimensions: Width Height Depth (behind mounting surface) EIA Standard 19 in. W (EIA RS-310-B) x 3.5 in. (8.9 cm) H x12.25 in. (31.1cm) D
XTi 6000 is 16.2 in. (41.15 cm) D
Net Weight Shipping Weight 18.5 lb (8.4 kg) 21.5 lb (9.8 kg)
XTi 6000 is 24.0 lb (10.9 kg) 30.0 lb (13.6 kg)
|Dimensions W x D x H||482 x 311.15 x 88.9 mm|
|Warranty||6 years warranty|
